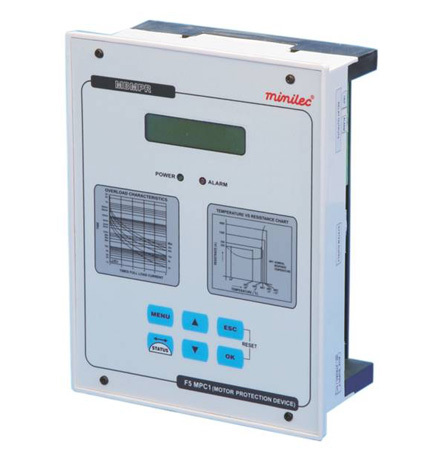

Minilec Microprocessor Pump Automation System

OVERVIEW :-

	Microcontroller based.
	Sensing voltage current and temperature
	Protecting against Phase Failure
	Unbalance
	Phase sequence
	Under/Over Voltage
	Overloading
	Winding over temperature
	Over current/Short circuit
	Auto/Manual resetting
	Locked rotor & earth fault
	On delay & start-up delay adjustable
	2x1CO output relays and serial communication port

TECHNICAL SPECIFICATION:-

 Supply Voltage

System   Auxillary	: :	415V AC +20%,-25% 3Ø, 3 Wire, 50 / (60)Hz ± 3% 90-270V AC / DC
Output	:	1 CO for Trip & 1 CO for Alarm/RS 232 Port (Optional)
Input	:	External CTS ( CT5/CT20/CT50 )
Power Consumption	:	8 VA
Trip Setting		Setting Trip Level Trip Delay LED Reset Mode Power ON - - * - Unbal/Ph.Rev 1% - 20% 1-10 Secs. * Auto / Manual Under Voltage 75% - 95% 1-10 Sec * Auto / Manual Over Voltage 105% - 120% 1-10 Secs. * Auto / Manual Current unbalance 20-60% of Imax 1-10 Secs. * Multi Attempt Current phase Loss - 1-10 Secs. * Multi Attempt Under Current (dry run) } for CDR-M 30-90% of Imax 1-10 Sec * Multi Attempt Over Current / Short Circuit 300% - 800% of Imax 2-25 Secs. * Multi Attempt Overload 2/5/10/15/20 Sec. As per IDMTL char. * Manual Lock Rotor 200%-500% of Imax 1-10 Secs. * Manual Earth Fault 30% - 80% 0.5 - 10 Secs. * Manual Winding Overheat 4K1 - 5K6 1-20 Secs. * Auto/ Manual
Display		16x2 (Back lit LCD Display)
Dimensions (mm)
Overall (L x W x D)   Panel Mounting (L x W)	: :	166 x 216 x 80   153 x 203
Approx Weight	:	600 gms

Note:

Wherever not specified Contact Rating : 5A @ 230 V AC (resistive)

CONNECTION DIAGRAM:-



Electical Connection Diagram
Relay contact position shown in 'Power off' condition

APPLICATION :-

Suitable for Panels in Following Apllications:

	Heavy Duty Motors
	Crane Motors
	Screw Compressors
	AHU Fan Motors
	HT Motors
	Pump protection
	Pump House Automation.




Advanced Pump Automation

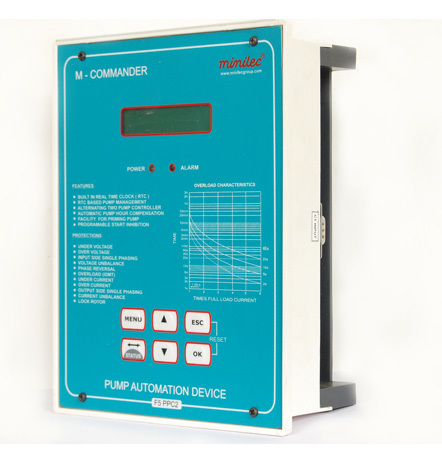

Minilecs microprocessor-based system is engineered for smart control of up to three pumps in various applications. It enables automated start/stop sequences, dry run protection, and water level management, reducing manual intervention and operational risks. The auto/manual/test modes empower users to operate, check or override the system as necessary, ensuring optimal performance and safety.


Flexible Installation and Connectivity

The device accommodates both DIN rail and surface mounting, making it suitable for diverse installation scenarios. Its compact design, combined with screw terminal connections and front panel controls, simplifies integration into existing setups, whether for new projects or retrofit jobs. LED status indicators keep operators informed of system health at a glance.


Reliable Monitoring and Fault Logging

Featuring basic inbuilt fault indication and status logging, this pump automation system delivers real-time awareness of operating states and potential faults. When abnormal conditions are detected, users are alerted through both audio and visual alarms, helping avoid downtime and enhancing preventative maintenance processes.
